How to Assemble the T umble T Wire Spool Rack

Steps 1-5

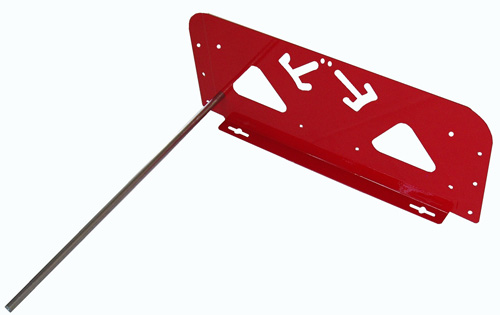

Step 1

  • Put 1/4 x 1/2" flange bolt into Hole #1 and thread 1 piece of 1/2" tubing onto the nut.
  • Only finger tight at this time.
t umble t wire spool rack holder assembly instructions step 1

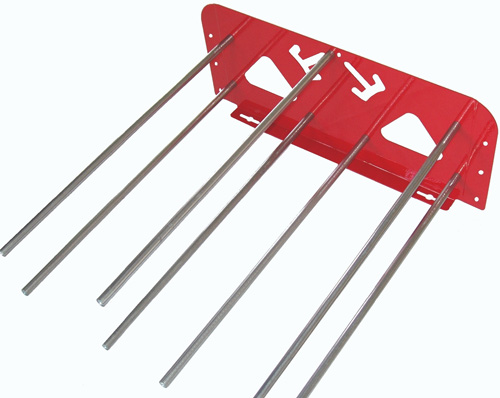

Step 2

  • Using tube #1 to balance the side plate, repeat Step #1 for Holes #2,3,4,5,6 and either hole for #7.
  • Only finger tight at this time
t umble t wire spool rack holder assembly instructions step 2

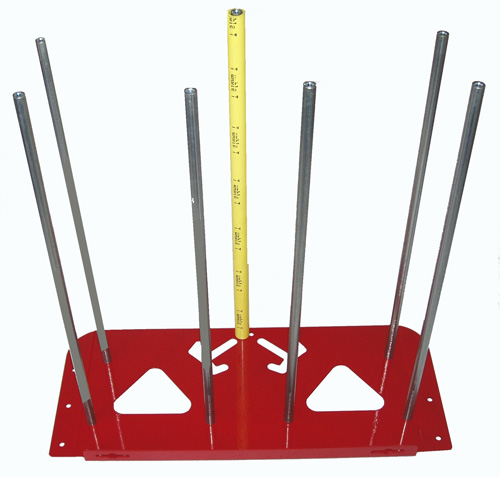

Step 3

  • Place the 1/2" x 20-1/8" PVC roller onto tube #7
t umble t wire spool rack holder assembly instructions step 3

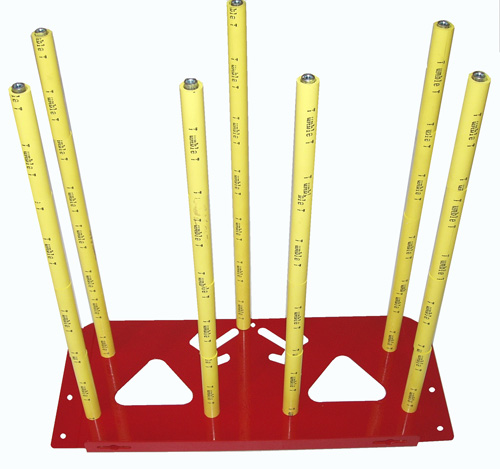

Step 4

  • Place 4 each 1/2" x 5" PVC rollers on each of the remaining 6 tubes. (24 rollers total)
t umble t wire spool rack holder assembly instructions step 4

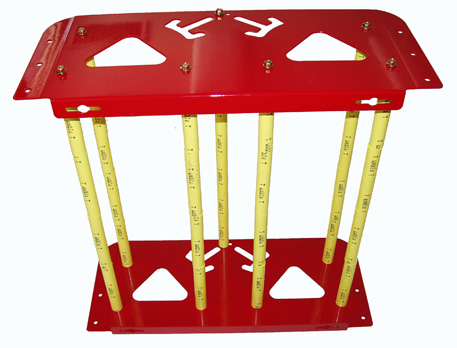

Step 5

  • Place the other end plate on top of the unit and carefully align the tubes to the matching holes, thread the 1/4" x 1/2" flange bolts into the tubes.
  • Pay Special attention to Hole #7
  • All bolts should only be finger tight
t umble t wire spool rack holder assembly instructions step 5

Continue to Steps 5-10
